Overview

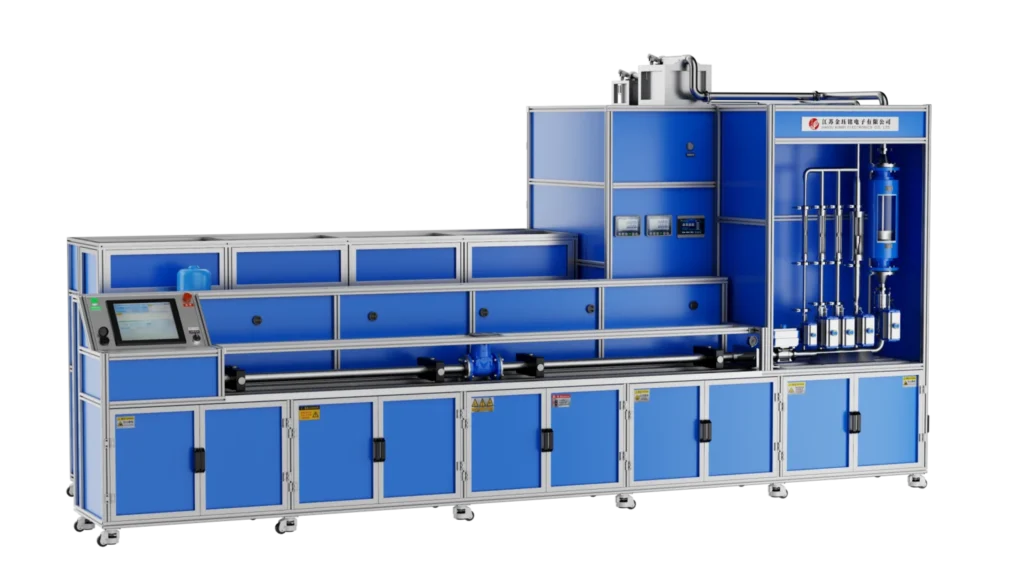

DN15–50 Vertical-Horizontal Integrated Water Meter Test Bench is listed in the KINMY Water Meter Test Bench Series range with a configuration identified by DN15–50, Vertical-Horizontal Integrated. Contact KINMY for a project-specific specification sheet and quotation.

Configuration

Nominal Diameter	DN15–50
Layout	Vertical-Horizontal Integrated

Measurement and Test Methods

Measurement principles	Piston Prover + Gravimetric + Reference Meter Method
Reference flow range	0.003–40 m³/h
Measurement modes	Start-Stop Method, Reversal Method, Flow-Time Method

Reference Standards and Instruments

Reference equipment listed for this catalog configuration. The supplied instrument set is confirmed with the project specification.

Weighing Instruments	Electronic balances; listed maximum capacities: 30 kg, 600 kg
Reference meters	Electromagnetic reference flowmeters

Product Highlights

Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.
7-inch touchscreen panel for setting parameters such as pressurization pressure, vacuuming pressure, pressurization time, and vacuuming water injection time.
Pneumatic quick-clamping, faster and more efficient than traditional hydraulic clamping methods, requiring no external high-pressure water source.
One-button start, one-button selection (manual or automatic), safe operation.
Suitable for mass production, used in conjunction with fully automatic Water Meter Test Benchs and automatic meter Meter Screwing Machines to improve production cycle time and increase capacity.
Low power consumption, energy-saving, requires only one operator, saving labor and time.

Reference Specifications

Measurement Uncertainty	Urel≤0.2% (k=2)
Flow Stability	1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium	Pure Tap Water
Operating Humidity	≤ 93% RH
Operating Water Temperature	20℃ ± 10℃
Device Operating Temperature	4˜50℃
Water Source Operating Pressure	0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure	0.4-0.7 MPa
Number of Meters Under Test	DN15: 10 units \| DN20: 8 units \| DN25: 6 units \| DN32/40/50: 1 unit \| Vertical Water Meters (DN15, DN20, DN25): 6 units \| Vertical Water Meters (DN32): 2 units \| Vertical Water Meters (DN40): 2 units \| Vertical Water Meters (DN50): 1 unit
Meter Clamping Mechanism	Dual-Cylinder External-Push Tandem Meter Clamping Device; Single Pneumatic Clamping Device for 10 Front 5 Rear Positions
Vacuum System	Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes	Fully Automatic, Semi-Automatic, Touchscreen Manual

Utilities and System Configuration

Water pump configuration	Nanfang CHM10-50, Flow Rate: 8 m³/h, Head: 48 m, 1 unit \| TD50-40G/2, Flow Rate: 50 m³/h, Head: 30 m, 1 unit
Water tank capacity	2000 L
Flow diverter	DN25, DN50 Cross-Type Pneumatic Open Reversers, Low Noise High Sensitivity, Stroke Difference 10 ms, Uncertainty ≤ 0.002%
Timing system	(10-100) kHz (Adjustable); Accuracy Better Than 10⁻⁶
Pulse acquisition signal	Pulse, f = (0˜10) kHz
Data acquisition hardware	10 Mobile Phones (Camera Resolution ≥ 40 Million Pixels)
Tightness test pressure range	(0˜2.0) MPa

Request Specifications

Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
