DN15–100 Fully Automatic Heat Meter Test Bench (Reference Meter Method) - KINMY

DN15–100 Fully Automatic Heat Meter Test Bench (Reference Meter Method) - view 2

DN15–100 Fully Automatic Heat Meter Test Bench (Reference Meter Method) - view 3

DN15–100 Fully Automatic Heat Meter Test Bench (Reference Meter Method)

Name: DN15–100 Heat Meter Bench – Reference Meter | KINMY
SKU: KINMY-KT-7181890

Request Specifications

Tell us the meter size, test method and required testing capacity.

DN15–100 heat meter test bench, reference meter, fully automatic. Request configuration details from KINMY.

Nominal Diameter: DN15–100
Test Method: Reference Meter Method
Automation: Fully Automatic

SKU: KINMY-KT-7181890

Category: DN15–100, Heat Meter Test Bench

Tags: Fully Automatic, Reference Meter Method

Overview

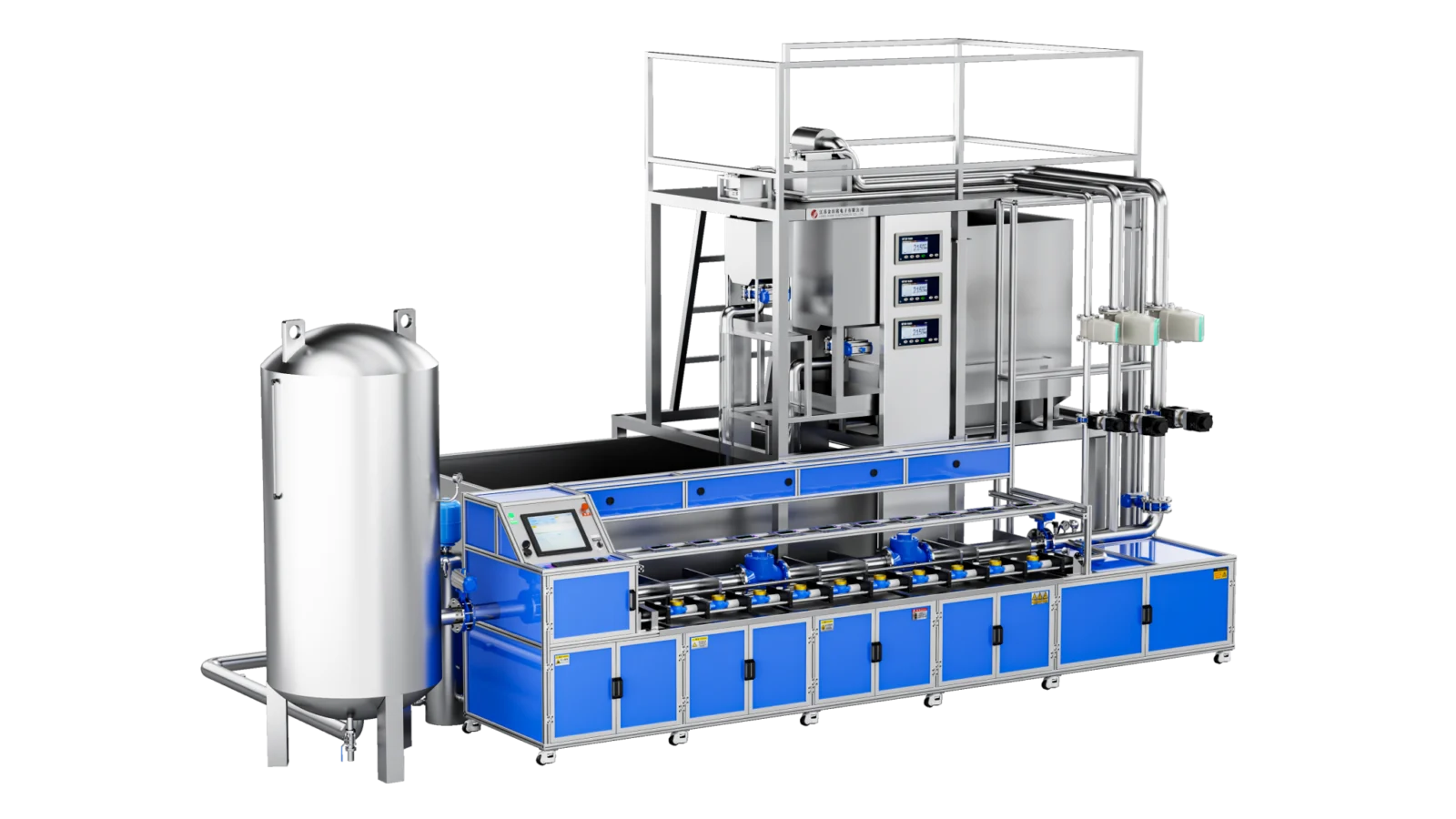

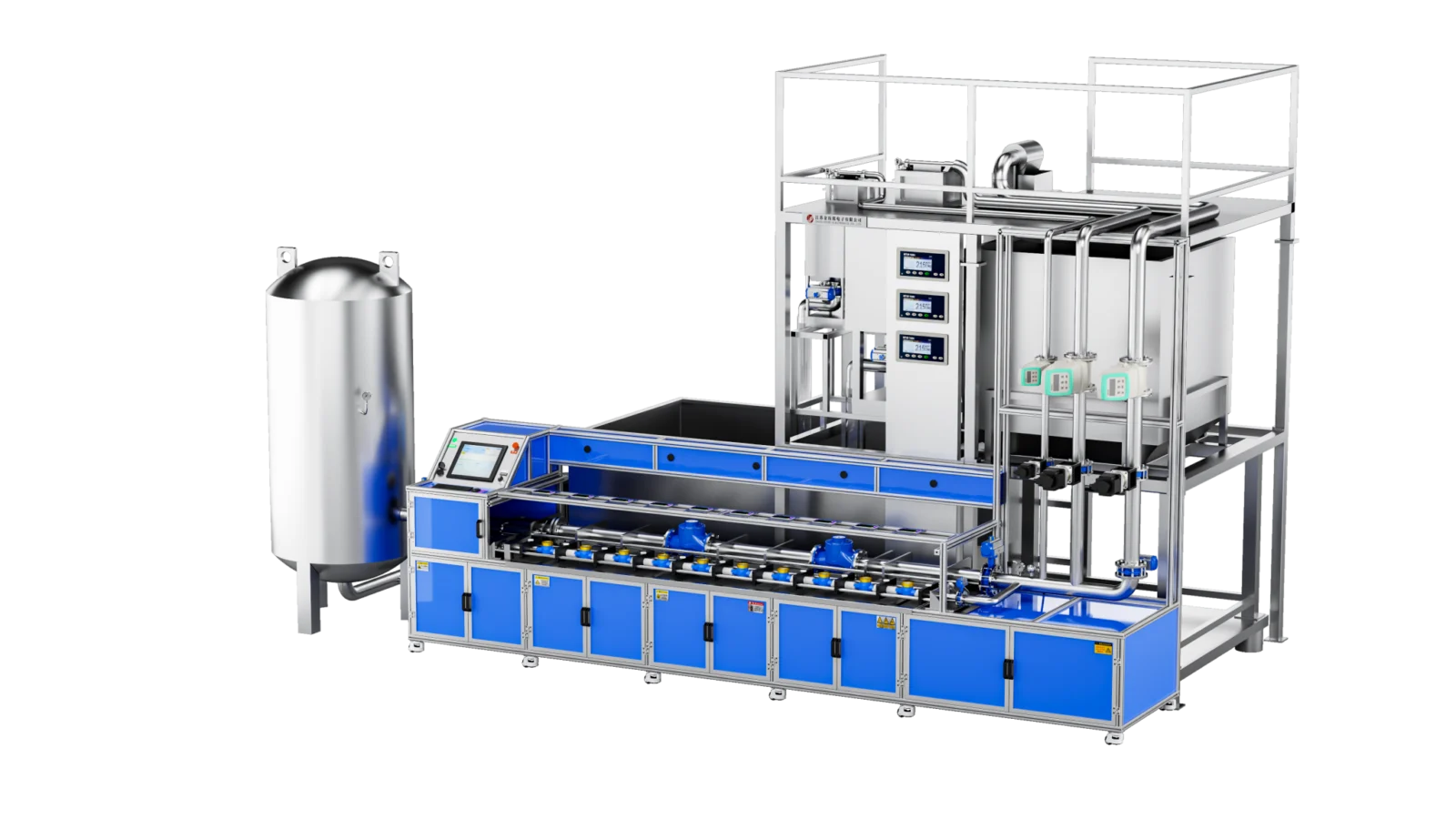

DN15–100 Fully Automatic Heat Meter Test Bench (Reference Meter Method) is listed in the KINMY Heat Meter Test Bench range with a configuration identified by DN15–100, Reference Meter Method, Fully Automatic. Contact KINMY for a project-specific specification sheet and quotation.

Configuration

Nominal Diameter	DN15–100
Test Method	Reference Meter Method
Automation	Fully Automatic

Measurement and Test Methods

Measurement principles	Reference Meter Method
Reference flow range	0.010–130 m³/h
Measurement modes	Start-Stop Method, Flow-Time Method

Reference Standards and Instruments

Reference equipment listed for this catalog configuration. The supplied instrument set is confirmed with the project specification.

Reference meters	Electromagnetic reference flowmeters
Temperature reference equipment	Standard platinum resistance thermometer (SPRT); digital multimeter for temperature acquisition; constant-temperature baths

Product Highlights

Compact size, small footprint, corrosion resistant, and equipped with wheels for easy movement.
2.7-inch touchscreen panel for setting pressure, vacuum pressure, pressure time, and vacuum water injection time.
Pneumatic quick clamping, faster and more efficient than traditional hydraulic clamping, requiring no external high-pressure water source.
One-button start, one-button selection (manual or automatic), safe operation.
Suitable for mass production, used in conjunction with fully automatic Water Meter Test Benchs and automatic meter Meter Screwing Machines to improve production cycle time and increase capacity.
Low power consumption, energy-saving, requires only one operator, saving labor and time.

Reference Specifications

Measurement Uncertainty	Urel ≤ 0.2% (k=2)
Flow Stability	1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium	Pure Tap Water
Operating Humidity	≤ 93% RH
Operating Water Temperature	20℃ ± 10℃
Device Operating Temperature	4˜50℃
Water Source Operating Pressure	0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure	0.4-0.7 MPa
Number of Meters Under Test	DN15: 10 units \| DN20: 8 units \| DN25: 6 units \| DN40, DN50, DN65: 5 units \| DN80, DN100: 3 units
Meter Clamping Mechanism	Dual-Cylinder External-Push Tandem Meter Clamping Device; Single Pneumatic Clamping Device for 10 Front 5 Rear Positions
Vacuum System	Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes	Fully Automatic, Semi-Automatic, Touchscreen Manual

Utilities and System Configuration

Water pump configuration	H=20 m; Q=2 m³/h; P=0.5 kW, 1 unit \| H=30 m; Q=40 m³/h; P=7.5 kW, 1 unit \| H=30 m; Q=180 m³/h; P=22 kW, 1 unit
Water tank capacity	15000 L
Flow diverter	DN25 DN100 Cross-Type Pneumatic Open Reversers, Low Noise High Sensitivity, Stroke Difference 10 ms, Uncertainty ≤ 0.002%
Timing system	(10-100) kHz (Adjustable); Accuracy Better Than 10⁻⁶
Pulse acquisition signal	Pulse, f = (0˜10) kHz
Data acquisition hardware	5 Mobile Phones (50 MP Pixels, 8G/128G Storage)
Tightness test pressure range	(0˜2.0) MPa

Request Specifications

Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
