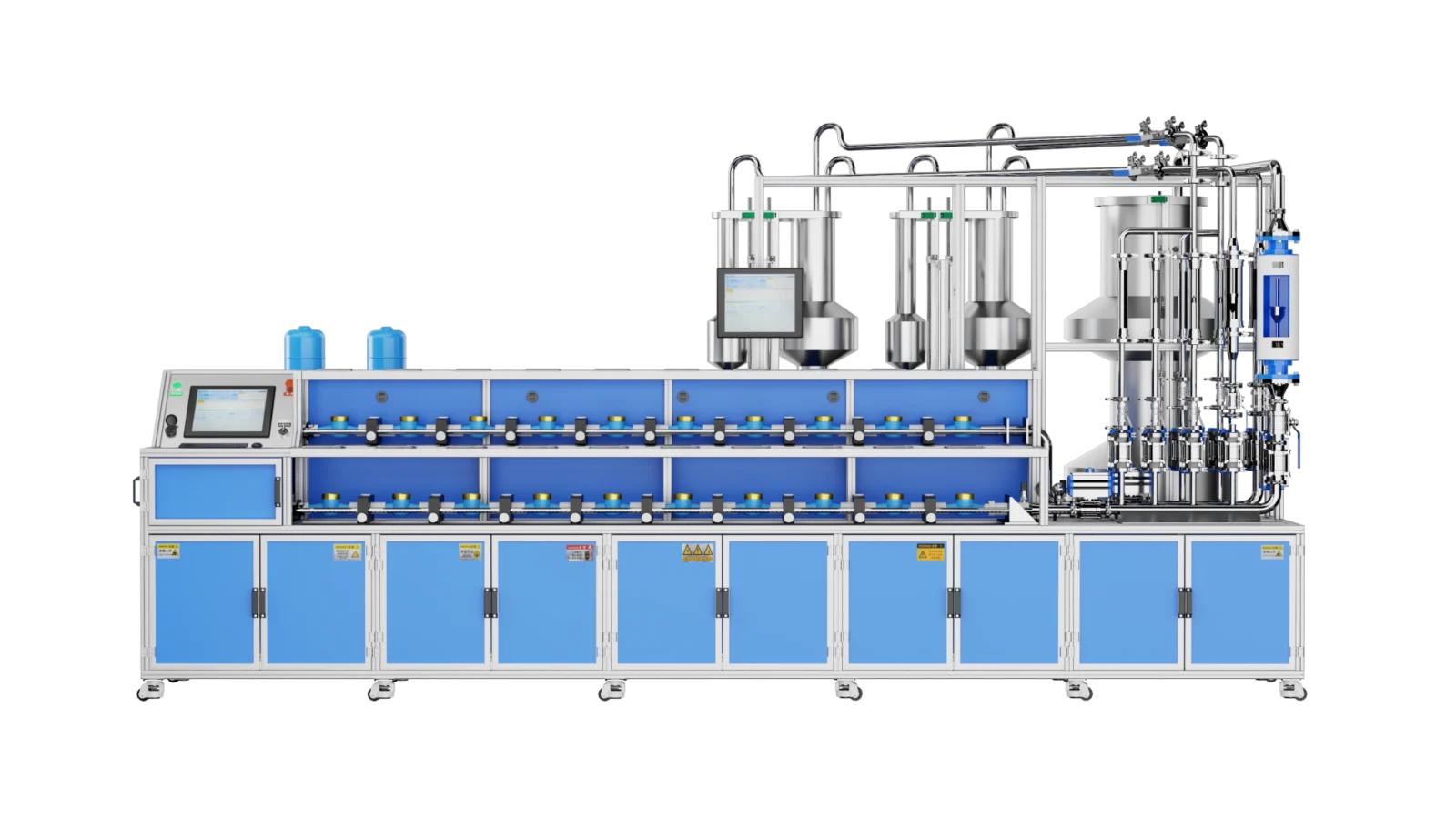

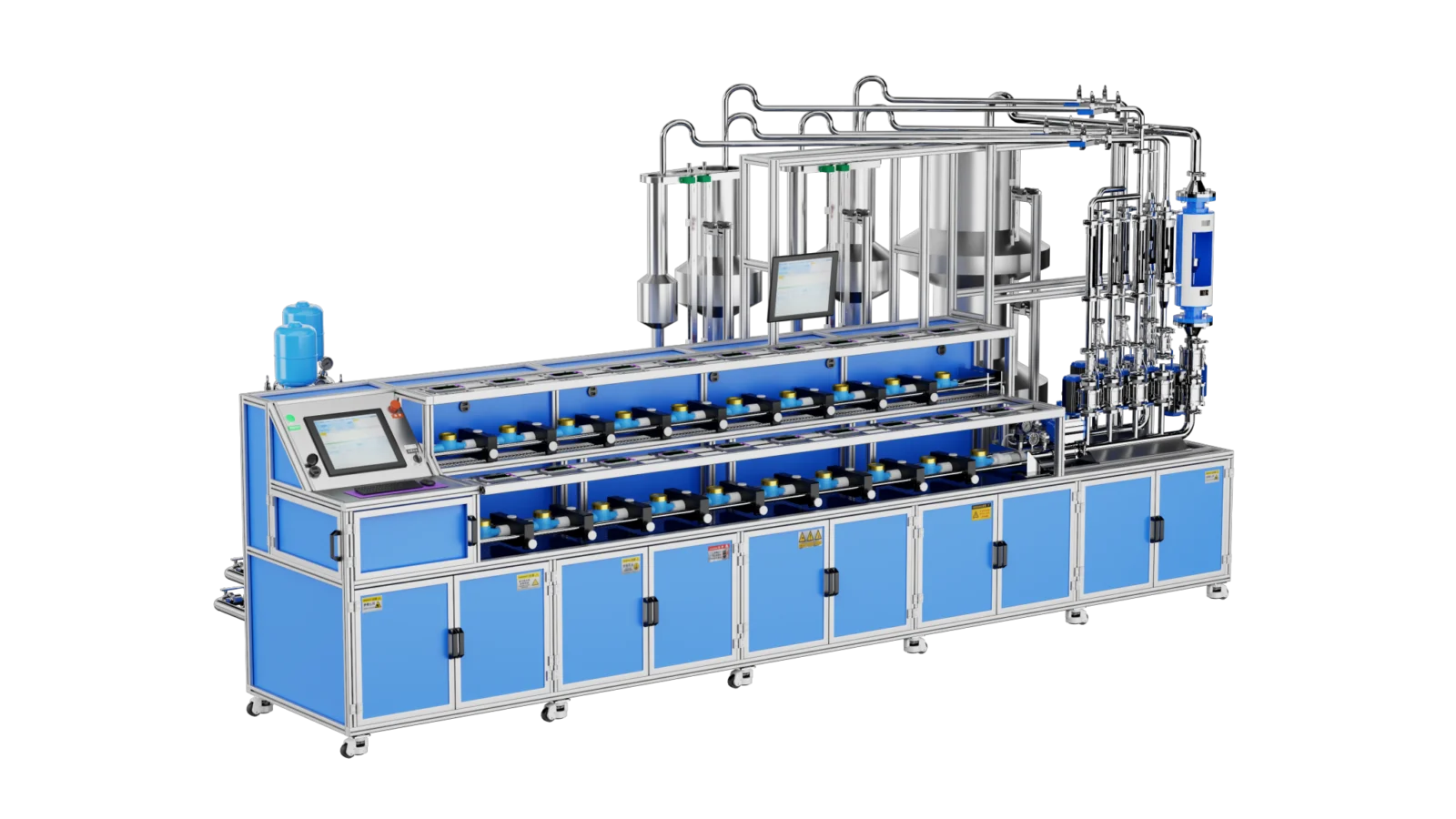

DN15–25 Fully Automatic Double-Row Water Meter Test Bench (Volumetric Method)
Request Specifications
Tell us the meter size, test method and required testing capacity.
DN15–25 water meter test bench, double-row configuration, volumetric, fully automatic. Request configuration details from KINMY.
- Nominal Diameter
- DN15–25
- Test Method
- Volumetric Method
- Layout
- Double-Row
- Automation
- Fully Automatic
Overview
DN15–25 Fully Automatic Double-Row Water Meter Test Bench (Volumetric Method) is listed in the KINMY Water Meter Test Bench Series range with a configuration identified by DN15–25, Volumetric Method, Double-Row, Fully Automatic. Contact KINMY for a project-specific specification sheet and quotation.
Configuration
| Nominal Diameter | DN15–25 |
|---|---|
| Test Method | Volumetric Method |
| Layout | Double-Row |
| Automation | Fully Automatic |
Measurement and Test Methods
| Measurement principles | Volumetric method |
|---|---|
| Reference flow range | 0.010~8 m³/h |
| Measurement modes | Start-stop method |
Reference Standards and Instruments
Reference equipment listed for this catalog configuration. The supplied instrument set is confirmed with the project specification.
| Volumetric reference instruments | Standard volumetric prover: 10L/20L, 50L/105L |
|---|
Product Highlights
- High Production Efficiency: 1000 water meters can be tested in eight hours.
- Fast Input Method: Wireless barcode scanner input of meter numbers, fast, accurate, and convenient.
- Energy Saving and Consumption Reduction: Saves water, electricity, and labor.
- Compact Size: Saves space, fully automated, shares a network, and saves auxiliary materials.
- Novel Structure: Uses European standard aluminum profile frame and 304 stainless steel, with a novel and elegant appearance.
- Automatic Pressure Testing, Automatic Vacuuming, and Reserved Function for Electronic Water Meter Calibration.
Reference Specifications
| Measurement Uncertainty | Urel ≤ 0.2% (k=2) |
|---|---|
| Flow Stability | ≤1.0% for start-stop method, ≤0.2% for other methods |
| Calibration Medium | Purified tap water |
| Operating Humidity | ≤ 93% RH |
| Operating Water Temperature | 20℃ ± 10℃ |
| Device Operating Temperature | 4~80℃ |
| Water Source Operating Pressure | 0.0-0.5 MPa (Adjustable) |
| Air Source Operating Pressure | 0.4-0.7 MPa |
| Applicable Meter Diameter | DN15-DN25 |
| Single-row Testing Capacity | DN15: 10 pcs, DN20: 8 pcs, DN25: 6 pcs |
| Double-row Testing Capacity | DN15: 10 pcs, DN20: 8 pcs, DN25: 6 pcs |
| Flow Range | 0.010~8 m³/h |
| Test Method | Start-stop method |
| Standard Volumetric Prover | 10L/20L, 50L/105L |
| Meter Clamping Mechanism | Double cylinder external push type series linkage clamper; single pneumatic clamper for front 10 and rear 5 positions. Caliber: Φ50mm, telescopic stroke ≥80mm |
| Vacuum System | Differential pressure vacuum generator, vacuum water filling to keep the water meter fully filled |
| Test Mode | Fully automatic, semi-automatic, touch screen manual |
| Water Meter Tightness Test Pressure Range | 0~2.65 MPa |
Utilities and System Configuration
| Water pump configuration | Nanfang pump with filter device, Model CHM10-50, flow 8m³/h, head 48m |
|---|---|
| Water temperature fluctuation per measurement | ≤±2℃ |
| Data acquisition hardware | Brand Android smartphones (Honor/Xiaomi/vivo) with more than 50 million pixels |
| Tightness test pressure range | 0~2.65 MPa |
Request Specifications
Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
