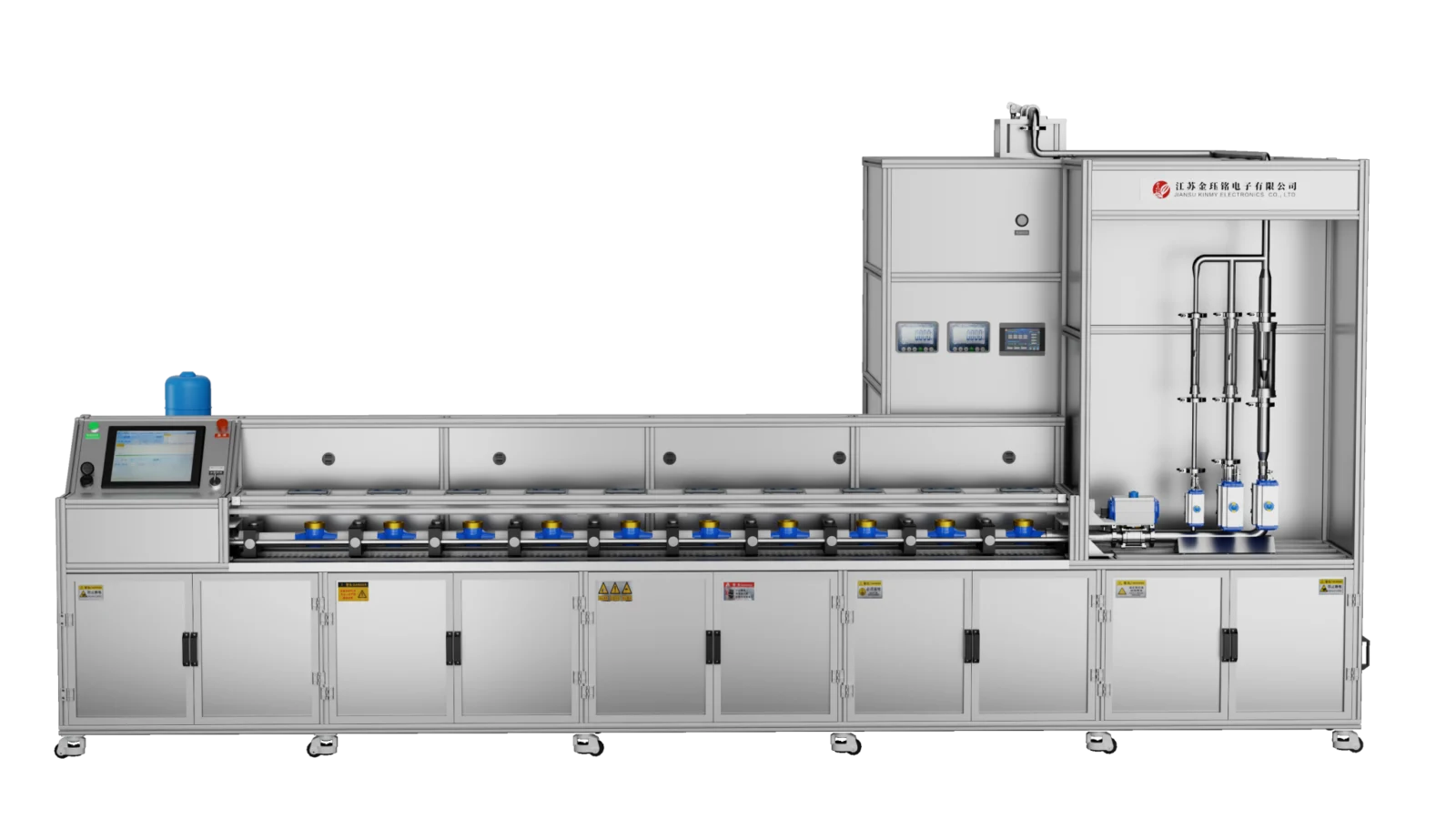

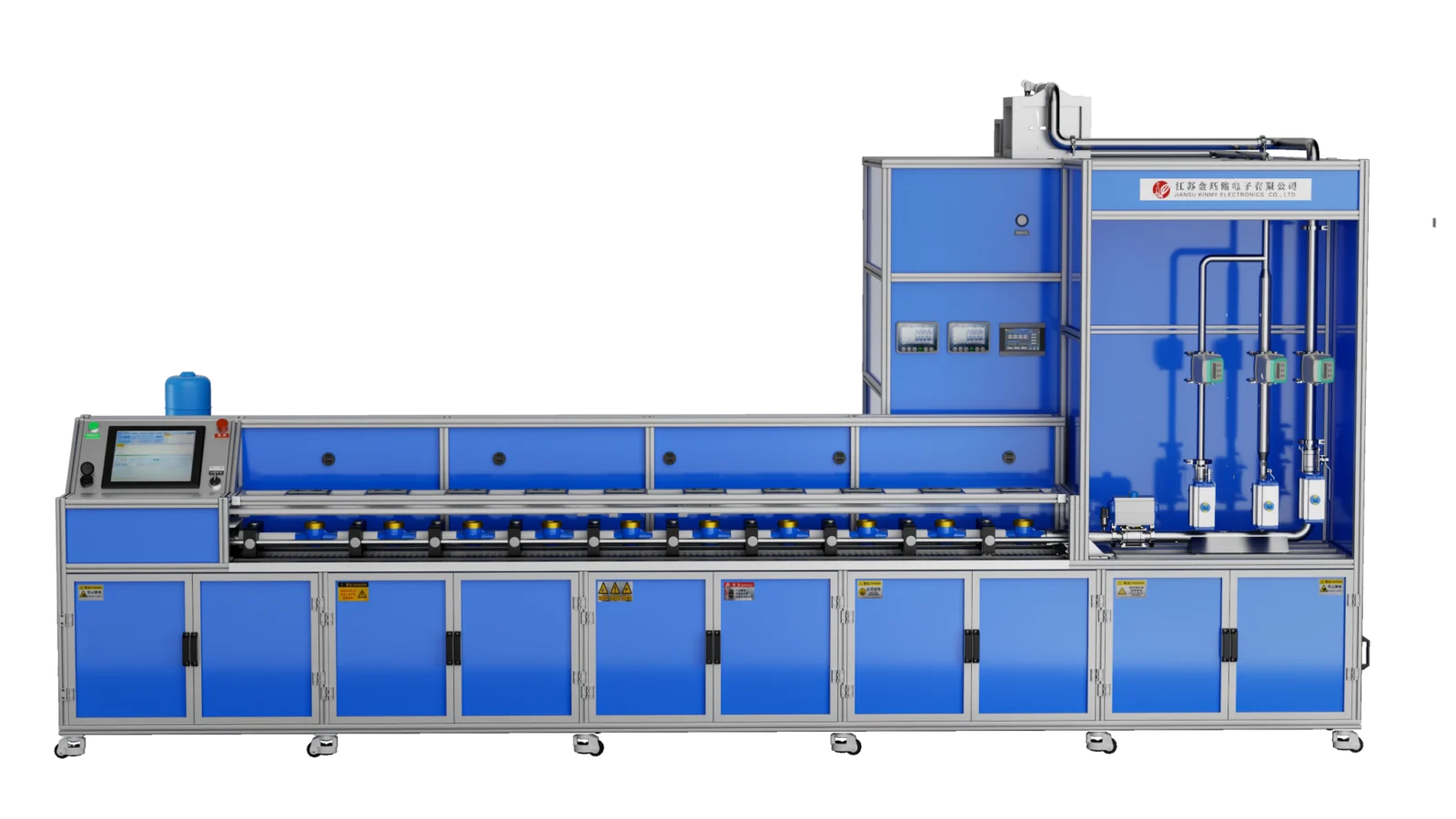

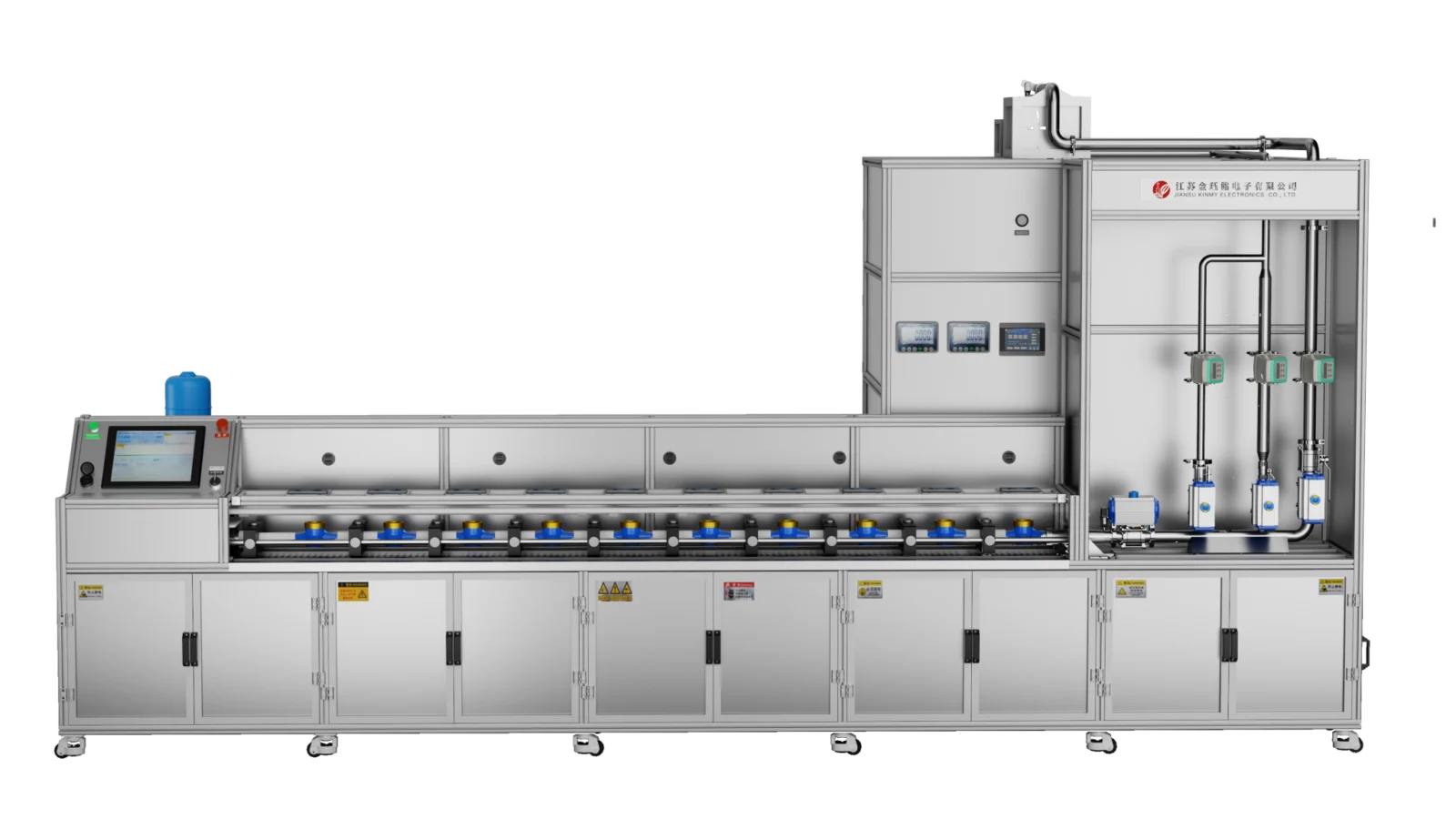

DN15–25 Fully Automatic Water Meter Test Bench (Gravimetric Method + Reference Meter Method)
Request Specifications
Tell us the meter size, test method and required testing capacity.
DN15–25 water meter test bench, gravimetric + reference meter, fully automatic. Request configuration details from KINMY.
- Nominal Diameter
- DN15–25
- Test Method
- Gravimetric Method + Reference Meter Method
- Automation
- Fully Automatic
Overview
DN15–25 Fully Automatic Water Meter Test Bench (Gravimetric Method + Reference Meter Method) is listed in the KINMY Water Meter Test Bench Series range with a configuration identified by DN15–25, Gravimetric Method + Reference Meter Method, Fully Automatic. Contact KINMY for a project-specific specification sheet and quotation.
Configuration
| Nominal Diameter | DN15–25 |
|---|---|
| Test Method | Gravimetric Method + Reference Meter Method |
| Automation | Fully Automatic |
Product Highlights
- High Production Efficiency: 800 water meters can be tested in eight hours.
- Fast Input Method: Wireless barcode scanner input of meter numbers—fast, accurate, and convenient.
- Energy Saving and Consumption Reduction: Saves water, electricity, and labor.
- Compact Size: Saves space, fully automated, shares a network, and reduces auxiliary materials.
- Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance.
Reference Specifications
| Measurement Uncertainty | Urel≤0.2% (k=2) |
|---|---|
| Flow Stability | 1.0% for Start-Stop Method; 0.2% for Other Methods |
| Calibration Medium | Pure Tap Water |
| Operating Humidity | ≤ 93% RH |
| Operating Water Temperature | 20℃ ± 10℃ |
| Device Operating Temperature | 4˜50℃ |
| Water Source Operating Pressure | 0.0-0.5 MPa (Adjustable) |
| Air Source Operating Pressure | 0.4-0.7 MPa |
| Number of Meters Under Test | DN15: 10 units | DN20: 8 units | DN25: 6 units | Vertical Water Meters (DN15, DN20, DN25): 6 units |
| Meter Clamping Mechanism | Dual-Cylinder External-Push Tandem Meter Clamping Device; Single Pneumatic Clamping Device for 10 Front 5 Rear Positions |
| Vacuum System | Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State |
| Supported Test Modes | Fully Automatic, Semi-Automatic, Touchscreen Manual |
Request Specifications
Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
