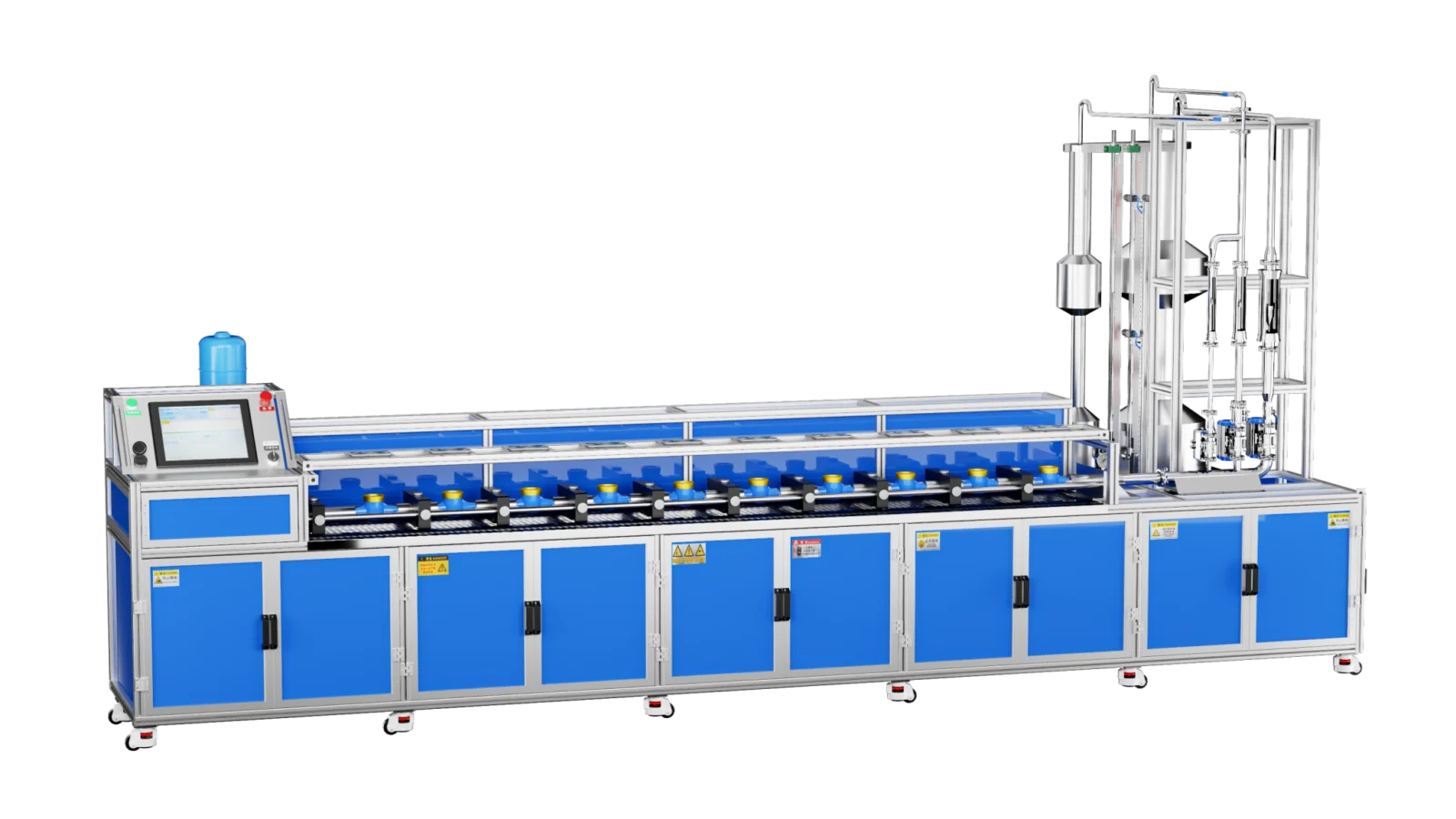

DN15–25 Fully Automatic Water Meter Test Bench (Volumetric Method + Reference Meter Method)

Name: DN15–25 Water Meter Bench – Volumetric + Reference Meter | KINMY
SKU: KINMY-KT-7181846

Request Specifications

Tell us the meter size, test method and required testing capacity.

DN15–25 water meter test bench, volumetric + reference meter, fully automatic. Request configuration details from KINMY.

Nominal Diameter: DN15–25

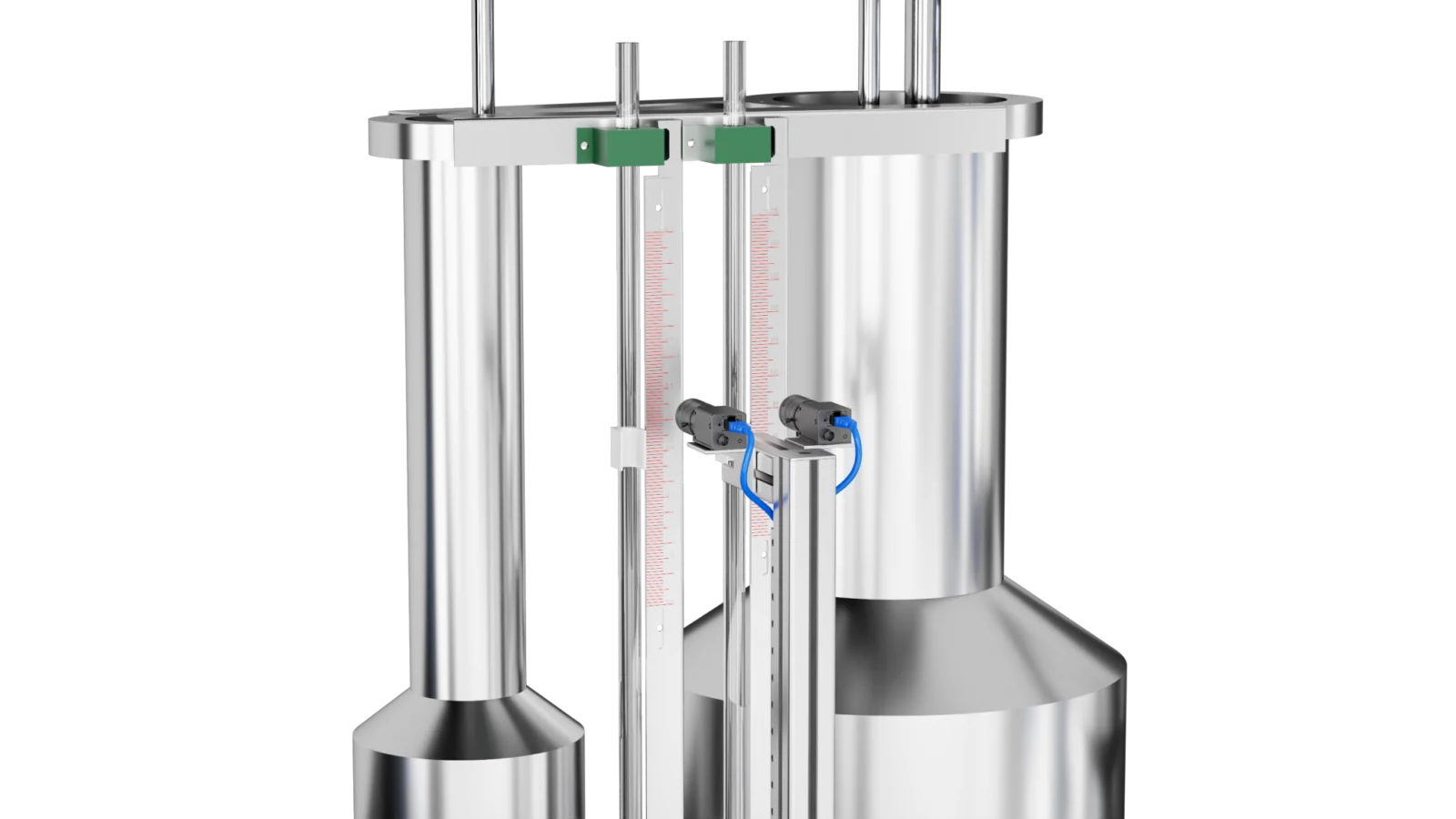

Test Method: Volumetric Method + Reference Meter Method
Automation: Fully Automatic

SKU: KINMY-KT-7181846

Category: DN15–25, Water Meter Test Bench Series

Tags: Fully Automatic, Reference Meter Method, Volumetric Method

Overview

DN15–25 Fully Automatic Water Meter Test Bench (Volumetric Method + Reference Meter Method) is listed in the KINMY Water Meter Test Bench Series range with a configuration identified by DN15–25, Volumetric Method + Reference Meter Method, Fully Automatic. Contact KINMY for a project-specific specification sheet and quotation.

Configuration

Nominal Diameter	DN15–25
Test Method	Volumetric Method + Reference Meter Method
Automation	Fully Automatic

Product Highlights

High Production Efficiency: 500 water meters can be tested in eight hours;
Fast Input Method: Wireless barcode scanner input of meter numbers, fast, accurate, and convenient;
Energy Saving and Consumption Reduction: Saves water, electricity, and labor;
Compact Size: Saves space, fully automated, shared network, and saves auxiliary materials;
Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance.

Reference Specifications

Measurement Uncertainty	Urel≤0.2% (k=2)
Flow Stability	1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium	Pure Tap Water
Operating Humidity	≤ 93% RH
Operating Water Temperature	20℃ ± 10℃
Device Operating Temperature	4˜50℃
Water Source Operating Pressure	0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure	0.4-0.7 MPa
Number of Meters Under Test	DN15: 10 units \| DN20: 8 units \| DN25: 6 units \| Vertical Water Meters (DN15, DN20, DN25): 6 units
Meter Clamping Mechanism	Dual-Cylinder External-Push Tandem Meter Clamping Device; Single Pneumatic Clamping Device for 10 Front 5 Rear Positions
Vacuum System	Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes	Fully Automatic, Semi-Automatic, Touchscreen Manual

Request Specifications

Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
