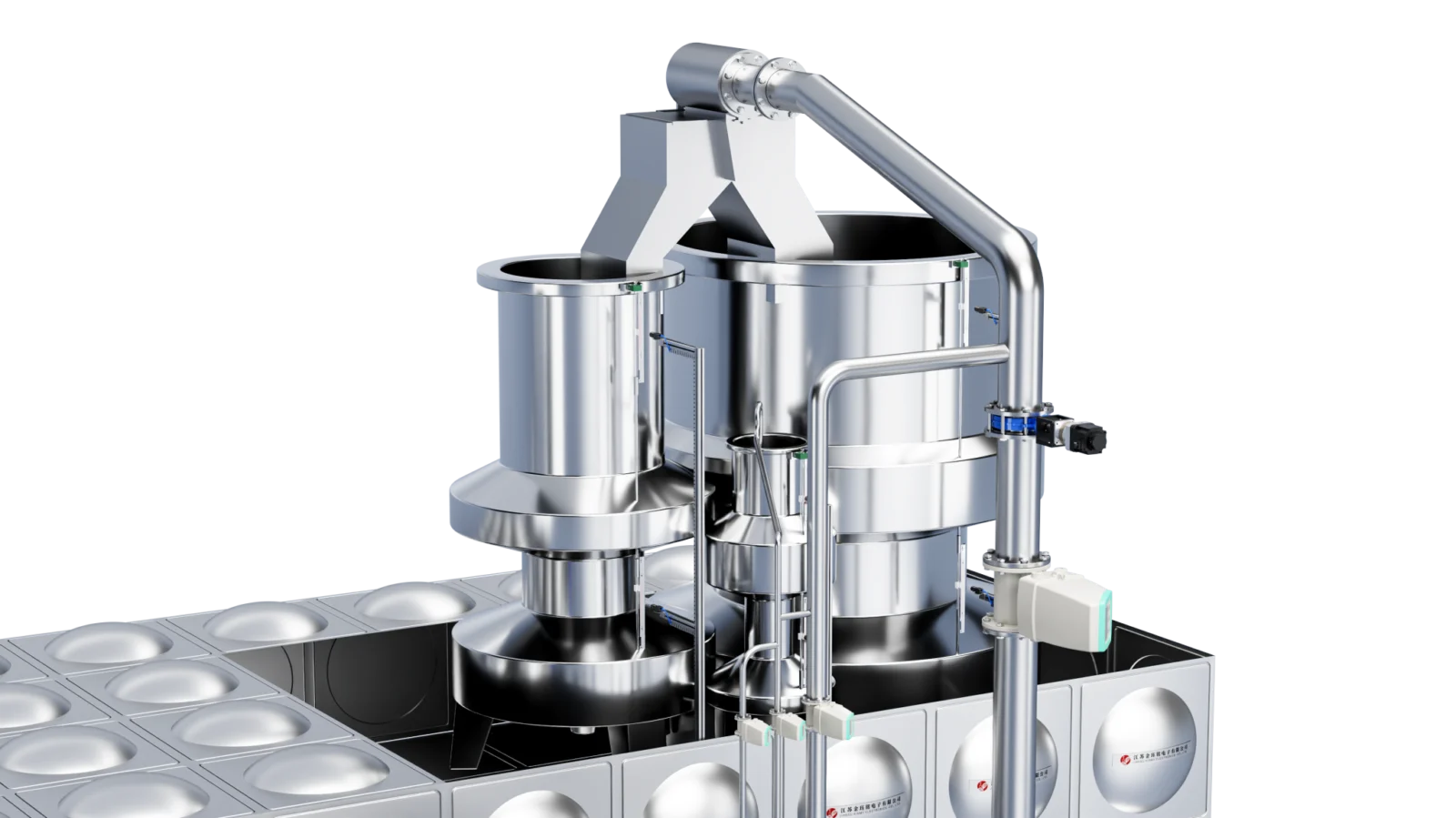

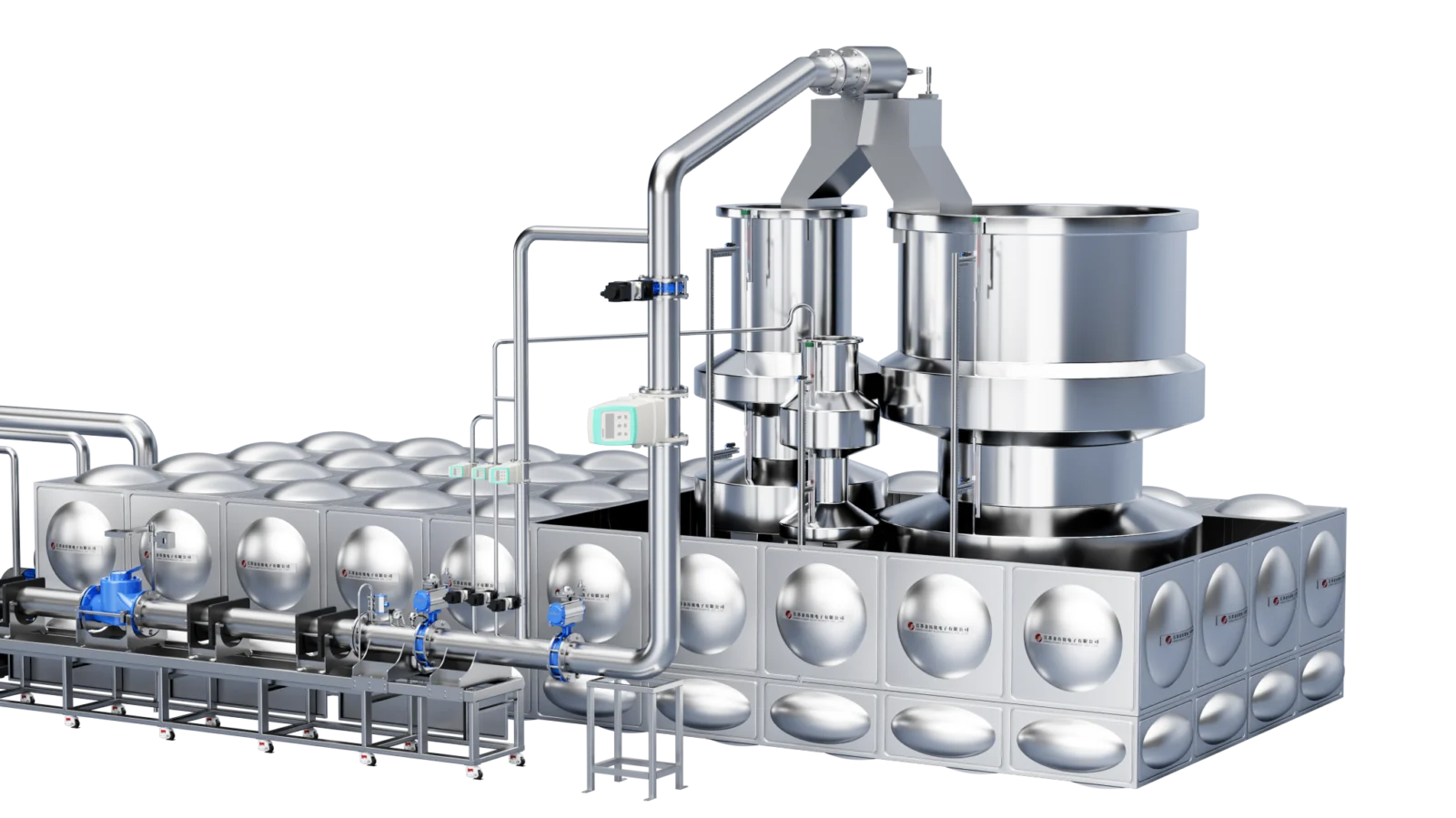

DN50–200 Fully Automatic Tube-Replacement Water Meter Test Bench (Volumetric Method) - KINMY

DN50–200 Fully Automatic Tube-Replacement Water Meter Test Bench (Volumetric Method) - view 2

DN50–200 Fully Automatic Tube-Replacement Water Meter Test Bench (Volumetric Method) - view 3

DN50–200 Fully Automatic Tube-Replacement Water Meter Test Bench (Volumetric Method) - view 4

DN50–200 Fully Automatic Tube-Replacement Water Meter Test Bench (Volumetric Method)

Name: DN50–200 Water Meter Bench – Tube-Replacement Volumetric | KINMY
SKU: KINMY-KT-7181806

Request Specifications

Tell us the meter size, test method and required testing capacity.

DN50–200 water meter test bench, tube-replacement configuration, volumetric, fully automatic. Request configuration details from KINMY.

Nominal Diameter: DN50–200
Test Method: Volumetric Method
Layout: Tube-Replacement
Automation: Fully Automatic

SKU: KINMY-KT-7181806

Category: DN50–200, Water Meter Test Bench Series

Tags: Fully Automatic, Tube-Replacement, Volumetric Method

Overview

DN50–200 Fully Automatic Tube-Replacement Water Meter Test Bench (Volumetric Method) is listed in the KINMY Water Meter Test Bench Series range with a configuration identified by DN50–200, Volumetric Method, Tube-Replacement, Fully Automatic. Contact KINMY for a project-specific specification sheet and quotation.

Configuration

Nominal Diameter	DN50–200
Test Method	Volumetric Method
Layout	Tube-Replacement
Automation	Fully Automatic

Product Highlights

High Production Efficiency: 100 water meters can be tested in eight hours.
Fast Input Method: Wireless barcode scanner input of meter numbers—fast, accurate, and convenient.
Energy Saving and Consumption Reduction: Saves water, electricity, and labor.
Compact Size: Saves space, fully automated, shares a network, and reduces auxiliary materials.
Novel Structure: European standard aluminum profile frame, 304 stainless steel piping, novel and stylish appearance.

Reference Specifications

Measurement Uncertainty	Urel≤0.2% (k=2)
Flow Stability	1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium	Pure Tap Water
Operating Humidity	≤ 93% RH
Operating Water Temperature	20℃ ± 10℃
Device Operating Temperature	4˜50℃
Water Source Operating Pressure	0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure	0.4-0.7 MPa
Number of Meters Under Test	DN50: 3 units \| DN65, DN80: 2 units \| DN100, DN150, DN200: 1 unit
Meter Clamping Mechanism	Dual-Cylinder External-Push Tandem Meter Clamping Device; Single Pneumatic Clamping Device for 10 Front 5 Rear Positions
Vacuum System	Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes	Fully Automatic, Semi-Automatic, Touchscreen Manual

Request Specifications

Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
