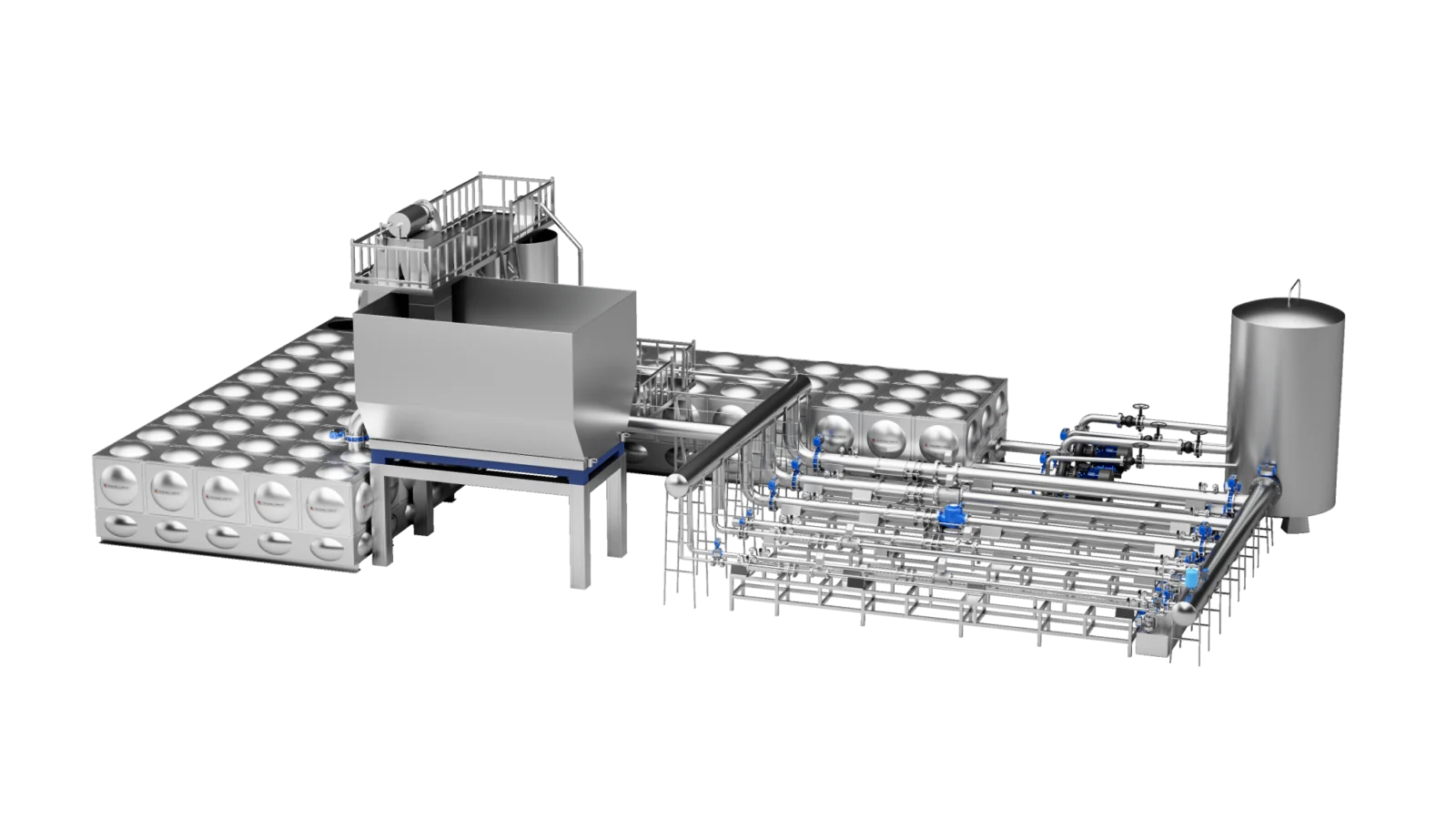

DN50–300 Fully Automatic Flat Layout Water Flow Calibration Device (Gravimetric Method) - KINMY

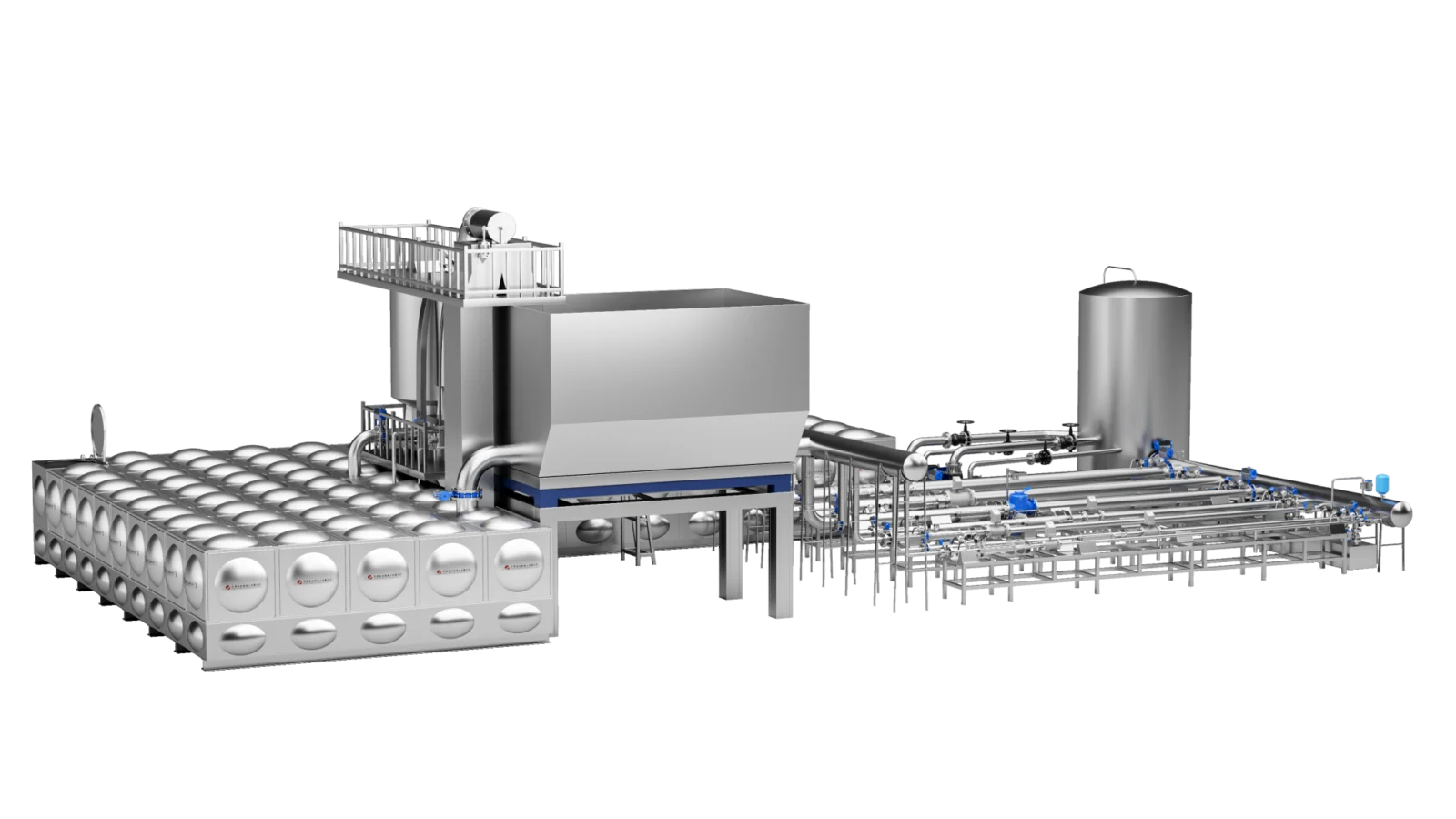

DN50–300 Fully Automatic Flat Layout Water Flow Calibration Device (Gravimetric Method) - view 2

DN50–300 Fully Automatic Flat Layout Water Flow Calibration Device (Gravimetric Method) - view 3

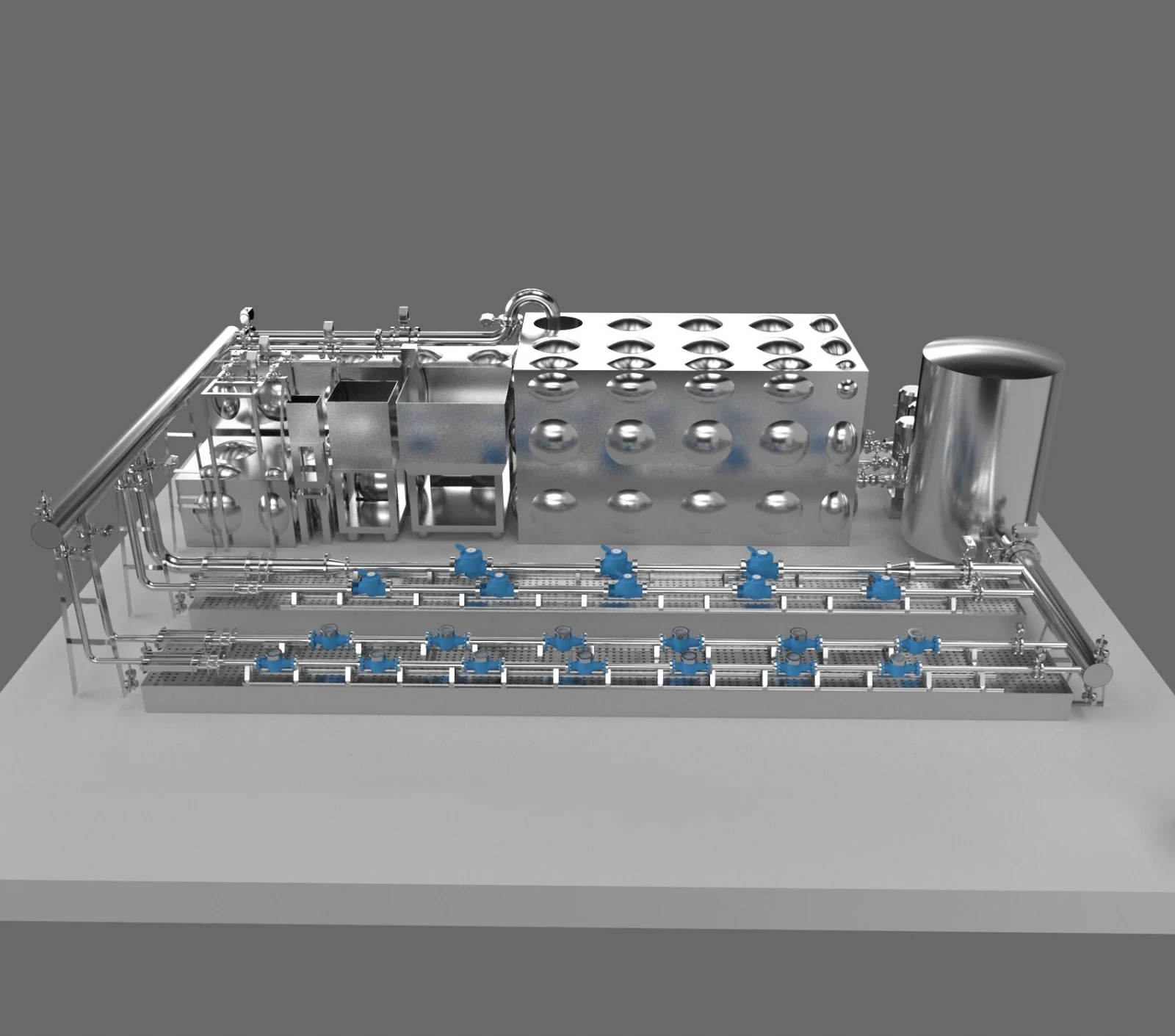

DN50–300 Fully Automatic Flat Layout Water Flow Calibration Device (Gravimetric Method) - view 4

DN50–300 Fully Automatic Flat Layout Water Flow Calibration Device (Gravimetric Method)

Name: DN50–300 Flow Calibration Device – Flat Layout Gravimetric | KINMY
SKU: KINMY-KT-7181995

Request Specifications

Tell us the meter size, test method and required testing capacity.

DN50–300 water flow calibration device, flat layout configuration, gravimetric, fully automatic. Request configuration details from KINMY.

Nominal Diameter: DN50–300
Test Method: Gravimetric Method
Layout: Flat Layout
Automation: Fully Automatic

SKU: KINMY-KT-7181995

Category: DN50–300, Liquid Flow Calibration Device

Tags: Flat Layout, Fully Automatic, Gravimetric Method

Overview

DN50–300 Fully Automatic Flat Layout Water Flow Calibration Device (Gravimetric Method) is listed in the KINMY Liquid Flow Calibration Device range with a configuration identified by DN50–300, Gravimetric Method, Flat Layout, Fully Automatic. Contact KINMY for a project-specific specification sheet and quotation.

Configuration

Nominal Diameter	DN50–300
Test Method	Gravimetric Method
Layout	Flat Layout
Automation	Fully Automatic

Reference Specifications

Measurement Uncertainty	Urel ≤ 0.05% (k=2)
Flow Stability	1.0% for Start-Stop Method; 0.2% for Other Methods
Calibration Medium	Pure Tap Water
Operating Humidity	≤ 93% RH
Operating Water Temperature	20℃ ± 10℃
Device Operating Temperature	4℃-50℃
Water Source Operating Pressure	0.0-0.5 MPa (Adjustable)
Air Source Operating Pressure	0.4-0.7 MPa
Meter Clamping Mechanism	Stainless Steel Pneumatic Meter Clamping Device
Vacuum System	Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State
Supported Test Modes	Fully Automatic, Semi-Automatic, Touchscreen Manual

Request Specifications

Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
