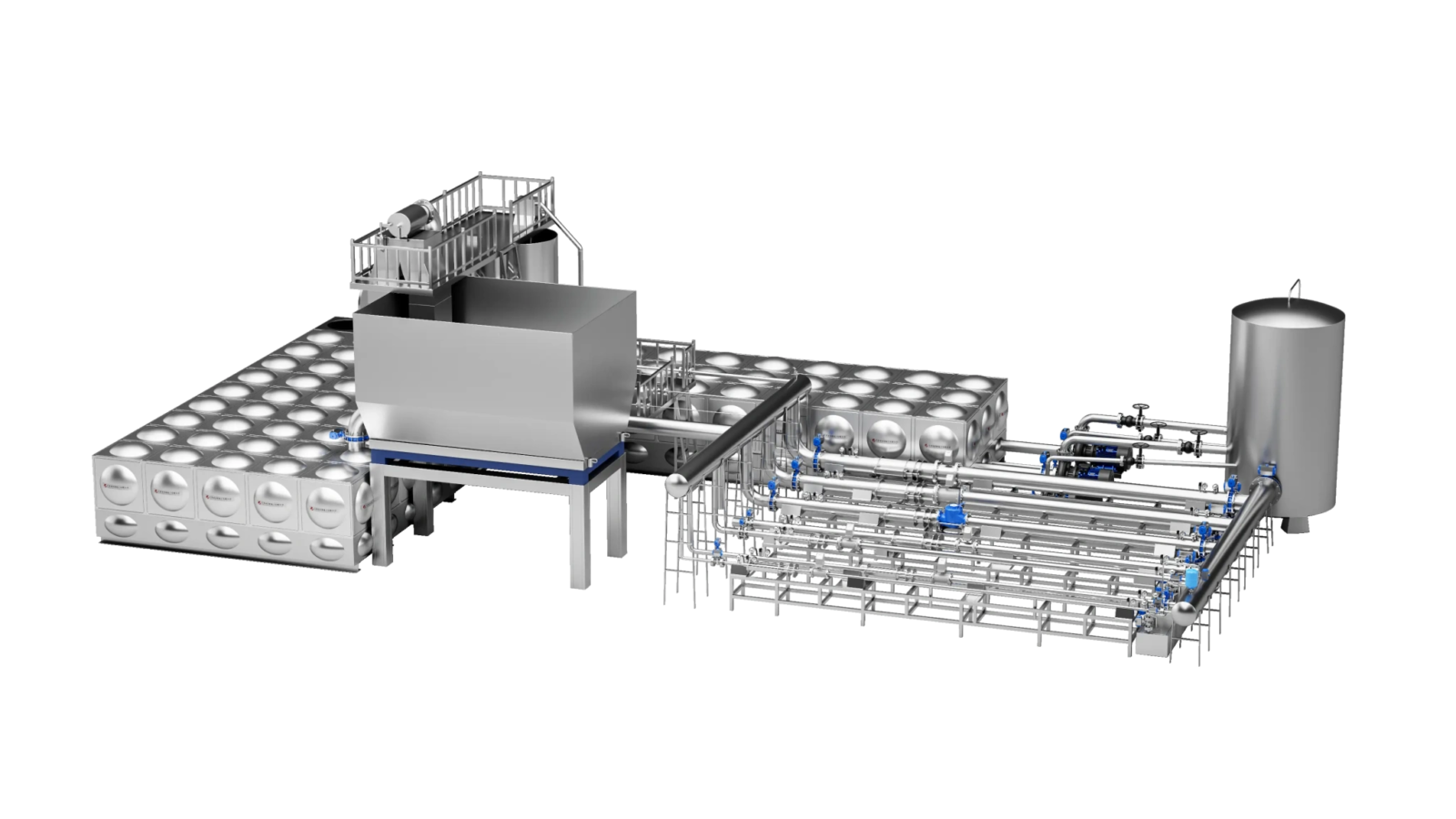

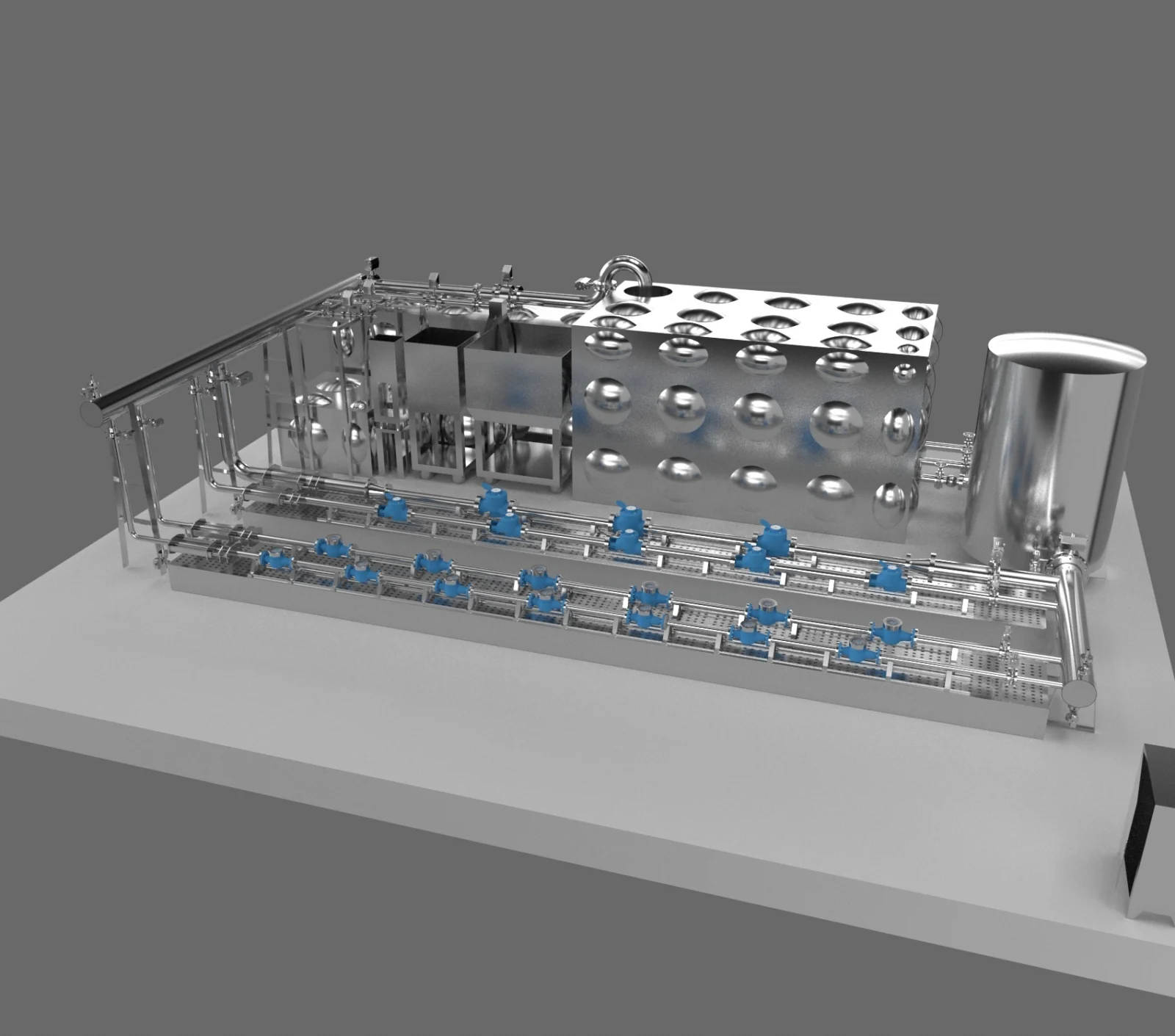

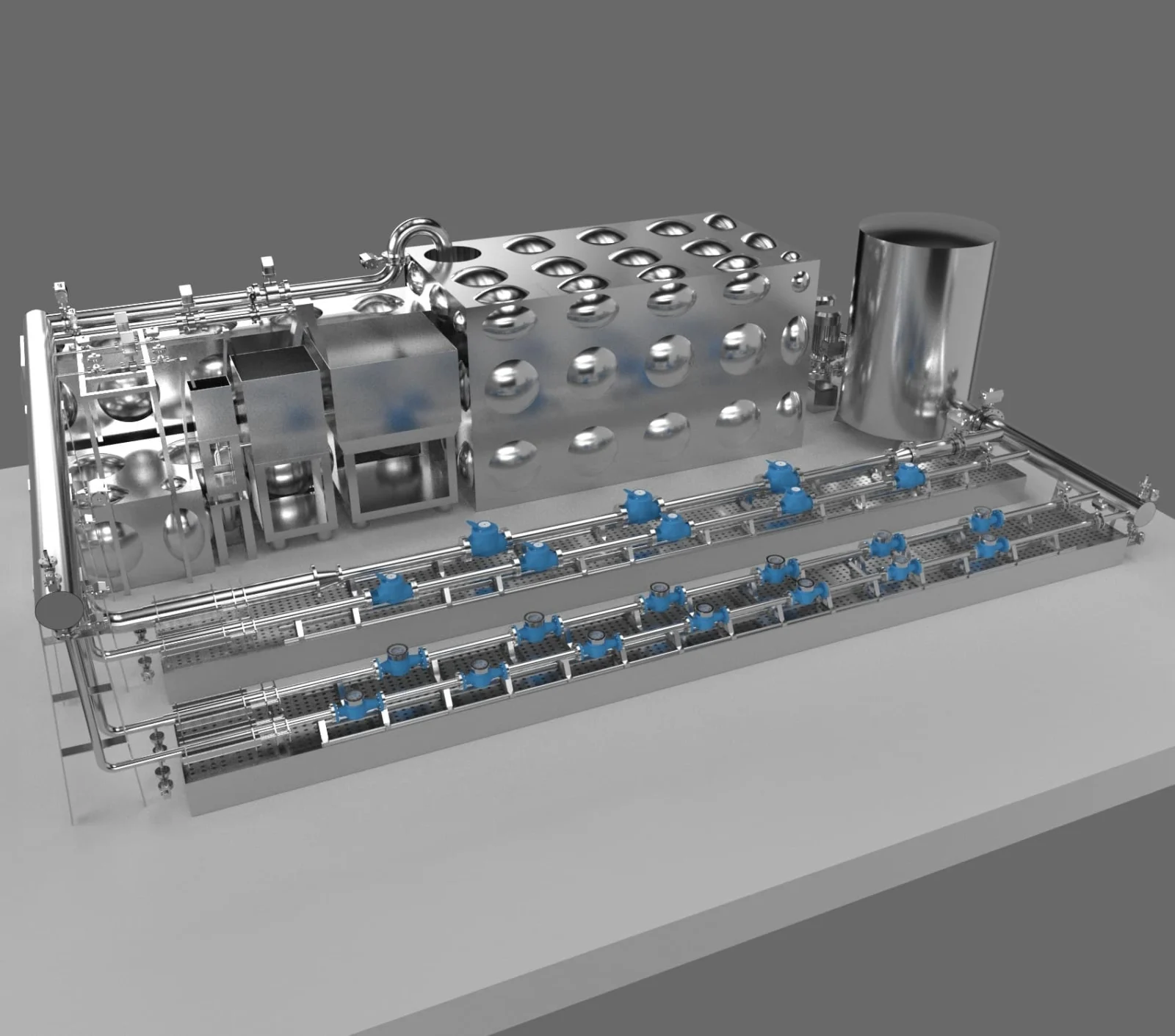

DN50–300 Fully Automatic Flat Layout Water Meter Test Bench (Gravimetric Method)
Request Specifications
Tell us the meter size, test method and required testing capacity.
DN50–300 water meter test bench, flat layout configuration, gravimetric, fully automatic. Request configuration details from KINMY.
- Nominal Diameter
- DN50–300
- Test Method
- Gravimetric Method
- Layout
- Flat Layout
- Automation
- Fully Automatic
Overview
DN50–300 Fully Automatic Flat Layout Water Meter Test Bench (Gravimetric Method) is listed in the KINMY Water Meter Test Bench Series range with a configuration identified by DN50–300, Gravimetric Method, Flat Layout, Fully Automatic. Contact KINMY for a project-specific specification sheet and quotation.
Configuration
| Nominal Diameter | DN50–300 |
|---|---|
| Test Method | Gravimetric Method |
| Layout | Flat Layout |
| Automation | Fully Automatic |
Measurement and Test Methods
| Measurement principles | Gravimetric Method |
|---|---|
| Reference flow range | 0.010–2100 m³/h |
| Measurement modes | Start-Stop Method, Reversal Method |
Reference Standards and Instruments
Reference equipment listed for this catalog configuration. The supplied instrument set is confirmed with the project specification.
| Weighing Instruments | Electronic balances; listed maximum capacities: 60 kg, 600 kg |
|---|
Product Highlights
- High production efficiency;
- Fast input method: Wireless barcode scanner input for form numbers, fast, accurate, and convenient;
- Energy saving and consumption reduction: Saves water, electricity, and labor;
- Compact size: Saves space, fully automated, shared network, and saves auxiliary materials;
- Novel structure: 304 stainless steel piping, novel and elegant appearance.
Reference Specifications
| Measurement Uncertainty | Urel≤0.2% (k=2) |
|---|---|
| Flow Stability | 1.0% for Start-Stop Method; 0.2% for Other Methods |
| Calibration Medium | Pure Tap Water |
| Operating Humidity | ≤ 93% RH |
| Operating Water Temperature | 20℃ ± 10℃ |
| Device Operating Temperature | 4˜50℃ |
| Water Source Operating Pressure | 0.0-0.5 MPa (Adjustable) |
| Air Source Operating Pressure | 0.4-0.7 MPa |
| Number of Meters Under Test | DN50/65/80/100: 5 units | DN125/150/200: 2 units | DN250: 1 unit | DN300: 1 unit |
| Meter Clamping Mechanism | Stainless Steel Pneumatic Meter Clamping Device |
| Vacuum System | Differential-Pressure Vacuum Generator, Vacuum Priming, Maintains Water Meters in Full-Water State |
| Supported Test Modes | Fully Automatic, Semi-Automatic, Touchscreen Manual |
Utilities and System Configuration
| Water pump configuration | (CM10-10) H: 40 m; Q=10 m³/h; P=2.2 kW, 1 unit | (TD50-40G2/4) H: 40 m; Q=100 m³/h; P=18 kW, 1 unit | (TD300-40/4) H: 36 m; Q=1200 m³/h; P=110 kW, 2 units |
|---|---|
| Water tank capacity | 150 m³ |
| Flow diverter | DN15, DN25, DN50, DN100, DN400 Cross-Type Pneumatic Open Reversers, Low Noise High Sensitivity, Stroke Difference 10 ms, Uncertainty ≤ 0.002% |
| Timing system | (10-100) kHz (Adjustable); Accuracy Better Than 10⁻⁶ |
| Pulse acquisition signal | Pulse, f = (0˜10) kHz |
| Data acquisition hardware | 7 Sets of Pulse Collectors, 7 Sets of Serial Ports (RS232/RS485), 7 Sets of Camera-Based Water Meter Collectors |
| Tightness test pressure range | (0˜2.0) MPa |
Request Specifications
Final configuration, test range and supplied components can vary by project and selected method. Please send your meter sizes, required test method and expected testing capacity for confirmation.
